Smart Tail-Lock Gyro combo
[LTG-6100T + LTG6100G] for GP & EP helicopter

Iσως έχετε ακούσει για το Νόμο του MORE? η ίσως γνωρίζετε οτι κάθε 24 ώρες παράγεται ενας επεξεργαστής γρηγορότερος & μικρότρος απο τον χθεσινό? ΣΑΣ ΛΕΝΕ ΟΤΙ ΕΙΝΑΙ ΤΟ ΑΥΤΟ ΕΙΝΑΙ ΤΟ ΚΑΛΥΤΕΡΟ? ΡΩΤΗΣΤΕ ΑΝ ΞΕΡΟΥΝ ΤΟ LOGICTECH LTG-2100, LTG-6100 το LTG-6100 κάνει για θερμικά/ηλεκτρικά έως 90 / 600 μέγεθος ελικόπτερα LTG-2100 κάνει για όλα τα ηλεκτρικά Ελικόπτερα LTG-6100 συγκρίνεται με το Futaba GY-611 & LTG-2100 συγκρίνεται με το Futaba GY-401 ΣΥΓΚΡΙΝΕΤΟ ΤΟ, και αγοράστε το καλύτερο !

Feature:

Specification of Gyro LTG-6100T

Operating Voltage Power Consumption Input Signal Output Signal Gain Control Compatibility Mode Data setting method Data display method Dimension (mm) Weight

4.5~6.0V (Operating guarantee voltage 5.0) 90mA 2 Channels (Rudder . Gain) 1 Channel (Servo Drive) Remote control by transmitter Logictech/Futaba/JR TX & RX (PCM-FM Type) Button press Type LCD display (16 Characters * 2 Line) 40 W x 30 H x 22 D 31g

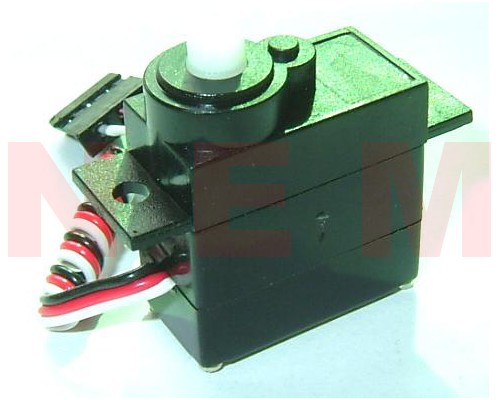

Specification of Servo LTG-6100G

Operating Voltage Speed  Compatibility Torque Dimension (mm) Weight

4.5~6.0V (Operating guarantee voltage 5.0)  0.05 sec /60° Logictech gyro LTG-6100T 4.5 kg-cm 40.7 W x 20 H x 38.5 D 52g

Product Description:
State of the ART gyro system
It realized the performance to control the Tail accurately without any drifts by using high speed chips
Through the efficient Data Procesing technology & control algorithm, the feeling to a finger tip is delicately tra-nsmitted to tail part
It quarantee a strong TAIL-LOCK performance, which can easily conduct a severe 3D flight in a gate along with the dedicated servo following the control signals of the Micro Processor perfectly.
By adopting the dedicated Servo, which has high speed & torque, the speed limit of the mechanism is overcome, (4.8V Conditions: 0.05sec/60° 4.5kg-cm)
It realized the characteristic of moderate stop after high or low speed pirouette by adopting the break control algorithm.
It solved the drft problem of the Tail fundementally by adopting the circuit design techonoly which causes no errors even when the ambient te,perature has a wide range of changes (usage temperature: -15 ~50°C)
It trasmits the setting information to the users with more familiar expressions & provides the users with easier setting enviroment under the Dot Matrix LCD module, which can display. (18 Characters x 2 Lines)

yro LTG-6100T	Servo LTG-6100G


What's in the Box:
LTG-6100T Smart Tail Lock Gyro
LTS-6100G high speed Servo
