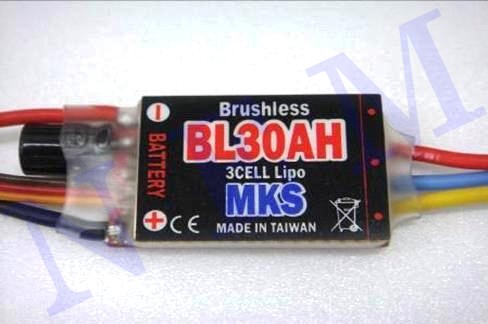

30A Speed Controller
for Brushless motor with BEC 2A/5V

Easy programmable, light weight, accurate, LiPo protect, Best ESC for your Brushless motors

Main Parameters:
1. When the controller signals lose, it will stop automatically
2. It can be used for electric Airplanes, Helicopters, Boats, Car
3. It can be positive and reverse change by adjusting the motor lines.
4. 3 LiPo battery pack suppot
5. Biggest instant electric current 50A
6. LiPo protection (9.2V)
7. Programmable for Airplane & Helicoptrs (Break On or Break OFF)
8. The temperature leads to carry the protection up to 95 °C

SPECIFICATIONS:

Model ESC 30A Size(mm) 22*38 Weight( g ) 21 Voltage 11.2V Static current 20mA Maximal current 45A Continius (A) 30A BEC Output(5.0V) 2A  ( Ω ) 0.005 Control mode 5KHZ

Specification：
◎3 LiPo battery 。
◎Maximun electric current in moment： 50 A。
◎Maximun continue electric current：30 A(300 W)。
◎BEC electric current：5.0 Vs/2 A。
◎Weak electricity protection：9.2V / 。
◎ Temperature overload protection：95 ℃。

Instruction：
Please connect ESC to non-brush motor and receiver，Keep the accelerator on the remote control in the lowest poition。Turn power on，then hear the validation tone： //  // ， It means that the status is in the mode without break 。Otherwise if you hear the validation tone： //  // ，it means that the status is in the mode with break 。When the battery is weak，the power of ESC will decline 20% with warning signal。

Set mode explanation：
Set the accelerator to the full speed position，then trun the power on ，The mode will become setting mode if you give the singal of accelerator within the period of three times sounding，If you don’t give any signal，the mode will reserve at last time 。
Tone without break：  //  // 
Tone with break：  //  // 

If you hear the Tone above，it means that the seting produre is finished。Please turn the power on again。
Note 1：If you don’t hear the validation tone after the power turning on ,Please check the connection between battery and receiver，or the position of acceleration (Setting in the lowest position )。
Note 2：Two lands of modes could be changed on purpose。
Note 3：The direction of the motor could be changed while chaning the wires。
If you have any question，information and technical support，Please contact us without hesitation。

Precation：
●The plus or minus polar of the battery must be in right position to connect ESC，if the ESC is destroyed by wrong connection , it will not belong to the warranty range 。
●The ESC is only suitable for the battery。Don’t use the power supply，it could be destroyed by over-locked current。The above situation will not belong to the warranty range。
●Don’t use the voltage higher than the specification of this ESC，It could be destroyed by the overload，The above situation will not belong to the warranty range。
●Though this product has some protection device，Please use it with precaution。
