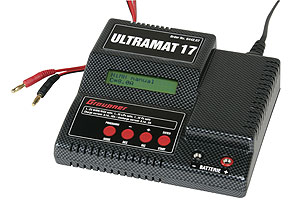

Graupner Ultramat 17 "Perfect Charger"
- Low-cost computer-controlled universal fast battery charger
- With integral lightweight switch-mode mains PSUfor 100 ... 240 V and 12 DC input. This makes the charger ideal for all "mobile" usage and also for use abroad (USA / Japan).
- Automatic charge, discharge, capacity measurement, battery maintenance and balancing program for NiMH and NiCd batteries as used in modelling.
- Ultra-simple to operate with a clearly arranged program structure and four buttons
- High-contrast two-line LCD screen with blue backlighting for simultaneous display of all relevant parameters.
- Charge / discharge facilities for NiMH, NiCd, LiPo and lead-acid batteries
- Delta-Peak cut-off detector for NiMH and NiCd cells with variable Delta-Peak voltage, guaranteeing reliable full charging to 100% capacity.
- Capable of charging single cells: ideal for glow energizerbatteries and for cell selection
- LiPo and Li-Io cells are charged using the constant current / constant voltage method. Declining current curve when the final charge voltage is reached; automatic charge termination.
- Lead-acid charge programs with optimised charge curve, discharge facility, variable discharge current for determining battery capacity and residual capacity.
- Protected against short-circuit, overload and reversed polarity.
- Ready for use.

Ultra-simple to operate with a clearly arranged program

Operating Voltage:	12..15V/12ADC or 100..240V AC
Charge Facilities:	1 ...25 NiMH / NiCD cells 1 ...10 LiPo / LiFe cells 1 ...12 Lead-Acid Cells
Charge Current:	0.1A ...10A with mains PSU (max120 W) 0.1#A ...10A with 12 ...15 V DC power
Discharge Current:	#0.1 ...5A (max50 W)
Cycle:	Charge, Discharge
LCD Display:	High-Contrast 2 lines blue color

Very easy SETUP

Graupner ULTRAMAT 17

I ULTRAMAT 17, (10 cells Li-PO/LiFe charging !!)  BEST VALUE for MONEY !

The package comes into a nice looking box

1.Factory Tested Ultramat 17 Charger
2. Adaptor for 12 V Power Supply
3. Instraction manual
